Fuel filter Nissan 16403-7F401 (with or without separator) D40/ N16/ P12/ R20/ V10

New, not original Nissan.

This fuel filter is suitable for Nissan Terrano2 R20 with TD27T & TD27TI diesel engine from March 2001 to December 2006.

Also available on the Nissan Terrano2 R20 with ZD30 diesel engine. Please check the dimensions carefully, because filter type does not depend on production date. There is variant without separator, photo 1 & 2 and the variant with separator, last 2 photos. When ordering, indicate which one you wish to receive.

Part also available on select models of the:

• Nissan Primera P12 with YD22DDT diesel engine and on select models of the
• Nissan Almera N16 YD22DDT diesel engine
• Nissan Almera Tino V10 with YD22DDTI diesel engine.
• Nissan Navara D40 with YD25DDTI diesel engine

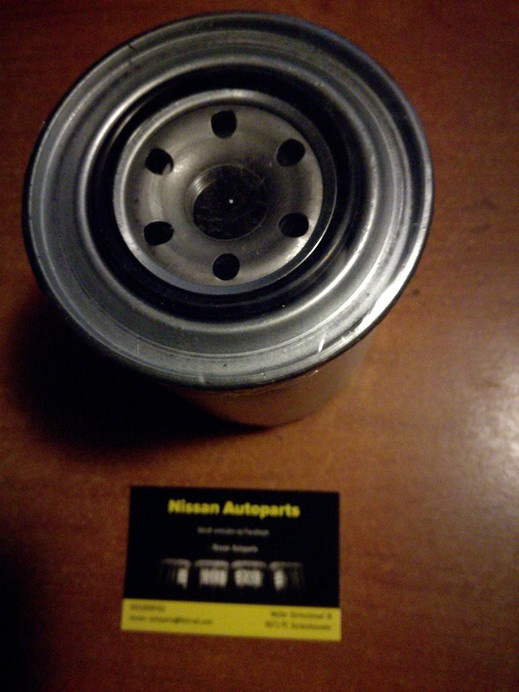

Specifications filter on photo 1/2:

• Filter type Screw-on filter
• Outer diameter [mm] 95
• Length (mm) 151
• Female thread [mm] 3/4 - 16UNF
• Color Metallic

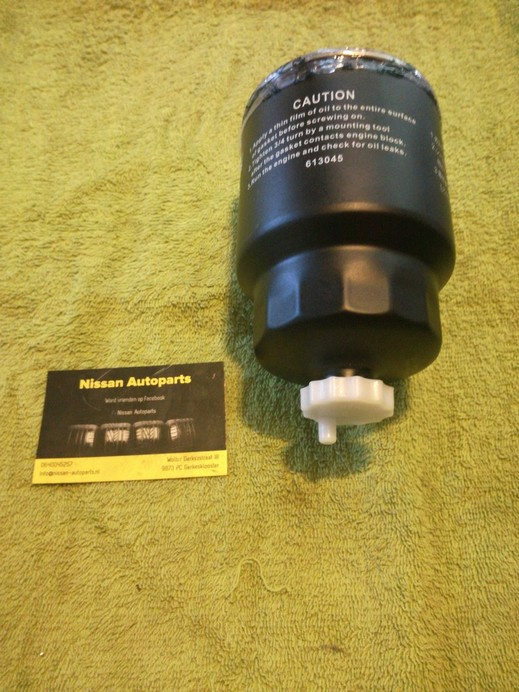

Specifications filter on photo 4/5:

• Filter type Screw-on filter
• Outer diameter [mm] 97
• Installation diameter [mm] 72
• Length (mm) 153
• Female thread [mm] 3/4 X 16

Concerns number 7 on the drawing.
