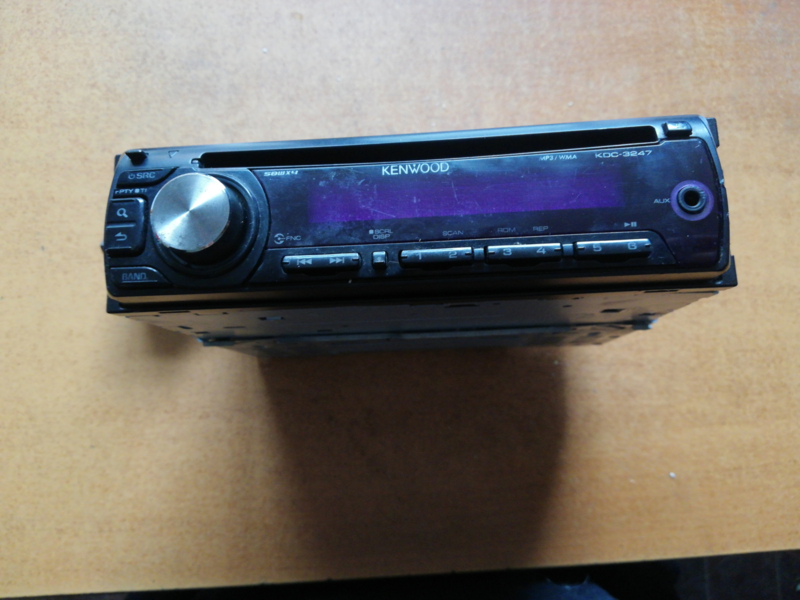

Betreft een gebruikte autoradio.
Key Features
| Mini-jack, front AUX input |
| Red key illumination |
| 11-Charater text display |
| Factory fitted steeringwheel remote control ready |

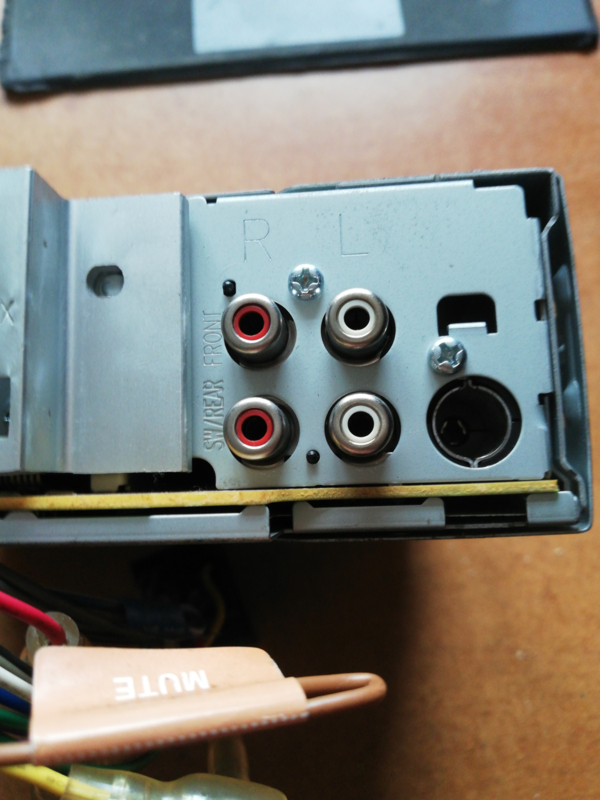

| 2 Stereo preouts with Low Pass Filter |
| 24 bit DAC & Supreme |
General Features
Display Features
Cosmetics features
| Front/edge | Black Injection |
| Dress plate | Black Injection |
| Preset key finish | Black Injection |
| Escutcheon finish | Black Injection |
| Volume & operation knob or wheel | Chrome Finish |
| Volume & operation knob illumination | Red |
| Triangle Illumination | Red |
| Key illumination | Red |
Tuner Features
CD Features
Audio Features
Connectivity
Tuner Specifications
| FM Frequency Range | 87.5MHz ~ 108MHz |
| FM Frequency Step | 50kHz |
| FM Usable Sensitivity | 1μV/75ohm (S/N 26dBf) |
| FM Quieting Sensitivity | 2.5μV/75ohm (S/N 46dBf) |
| FM Frequency Response | 30Hz ~ 15kHz (± 3dB) |
| FM Signal to noise ratio (Mono) | 63dB |
| FM Stereo Separation (1kHz) | 40dB |
| MW Frequency Range | 531kHz ~ 1611kHz (9kHz step) |
| MW Usable Sensitivity | 36μV |
| LW Frequency Range | 153kHz ~ 279kHz (9kHz step) |
| LW Usable Sensitivity | 57μV |
CD Specifications
| Laser Diode | GaAlAs |
| Digital Filter(D/A) | 8 Times Over Sampling |
| Digital/Analogue Converter | 24 Bit |
| Wow & Flutter | Below Measurable Limit |
| Frequency Response | 20Hz ~ 20kHz (±1dB) |
| Total Harmonic Distortion | 0.01% (1kHz) |
| Signal to Noise Ratio | 105dB (1kHz) |
| Dynamic Range | 93dB |
| MP3 Decoder | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decoder | Compliant with Windows Media Audio |
Audio Specifications
| Maximum Power | 50W x 4 |
| Output Power (DIN45324,+B=14.4v) | 30W x 4 |
| Preout Level | 2000mV / 10kOhm, |
| Preout Impedance | ≤ 600Ohm |
| Speaker Impedance | 4Ohm ~ 8Ohm |
| AUX Frequency Response | 20Hz ~ 20kHz (±1dB) |
| AUX Maximum Input Voltage | 1200mV |
| AUX Input Impedance | 10kOhm |
| Bass Tone Control | 100Hz ±8dB |
| Middle Tone Control | 1kHz ±8dB |
| Treble Tone Control | 10kHz ±8dB |
General Specifications
| Operating voltage | 14.4V (11 ~ 16V Allowable) |
| Maximum Current Consumption | 10A |
| Dimensions (WxHxD) | 182 x 53 x 155mm |
| Weight | 1300 gr. |
| Instruction Manuals | ENG/RUS/UKR |
